VOTOL EM50-6P Controller with USB + Heatsink, 50A Battery, 170A Phase
VOTOL EM50-6P Controller with USB + Heatsink, 50A Battery, 170A Phase
Couldn't load pickup availability

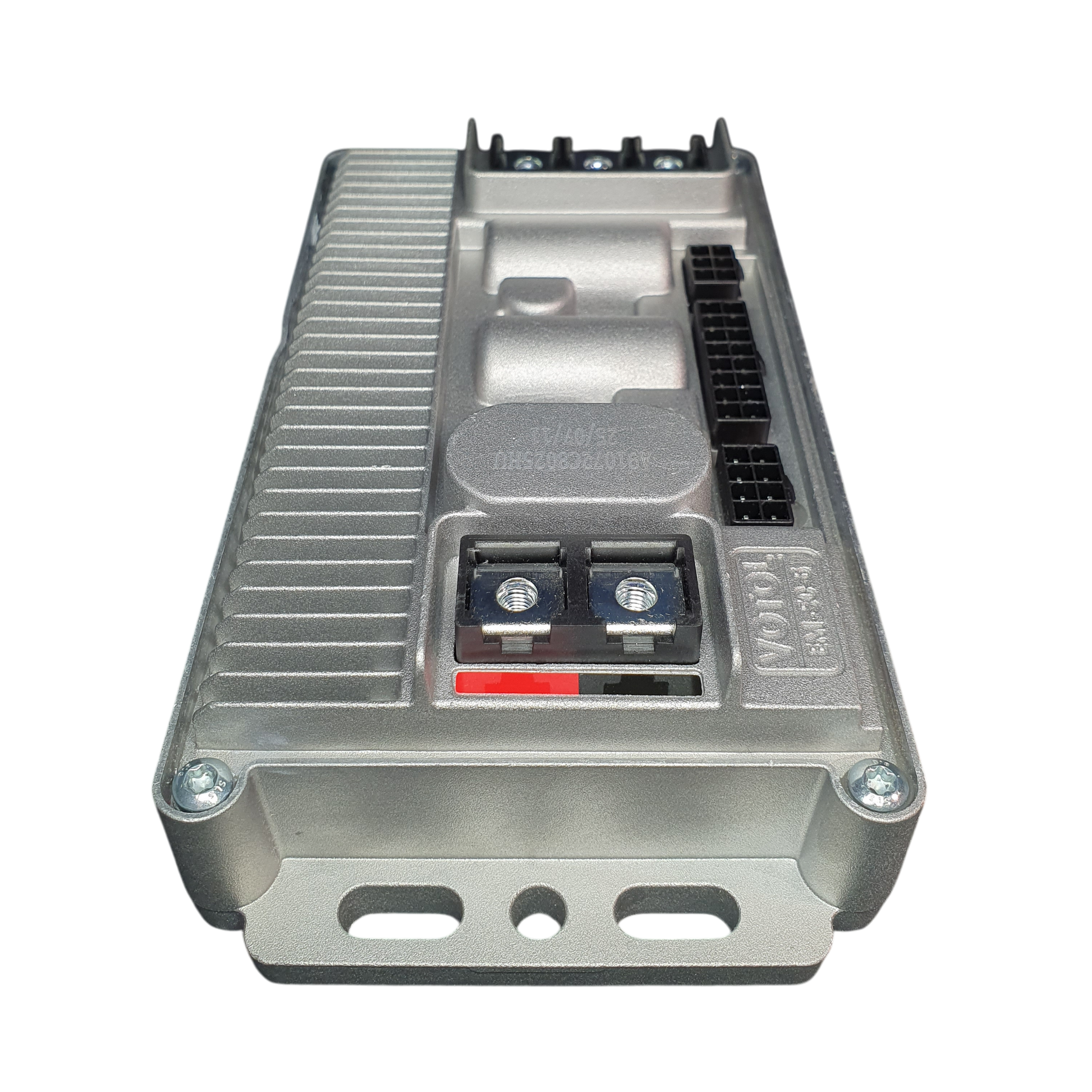

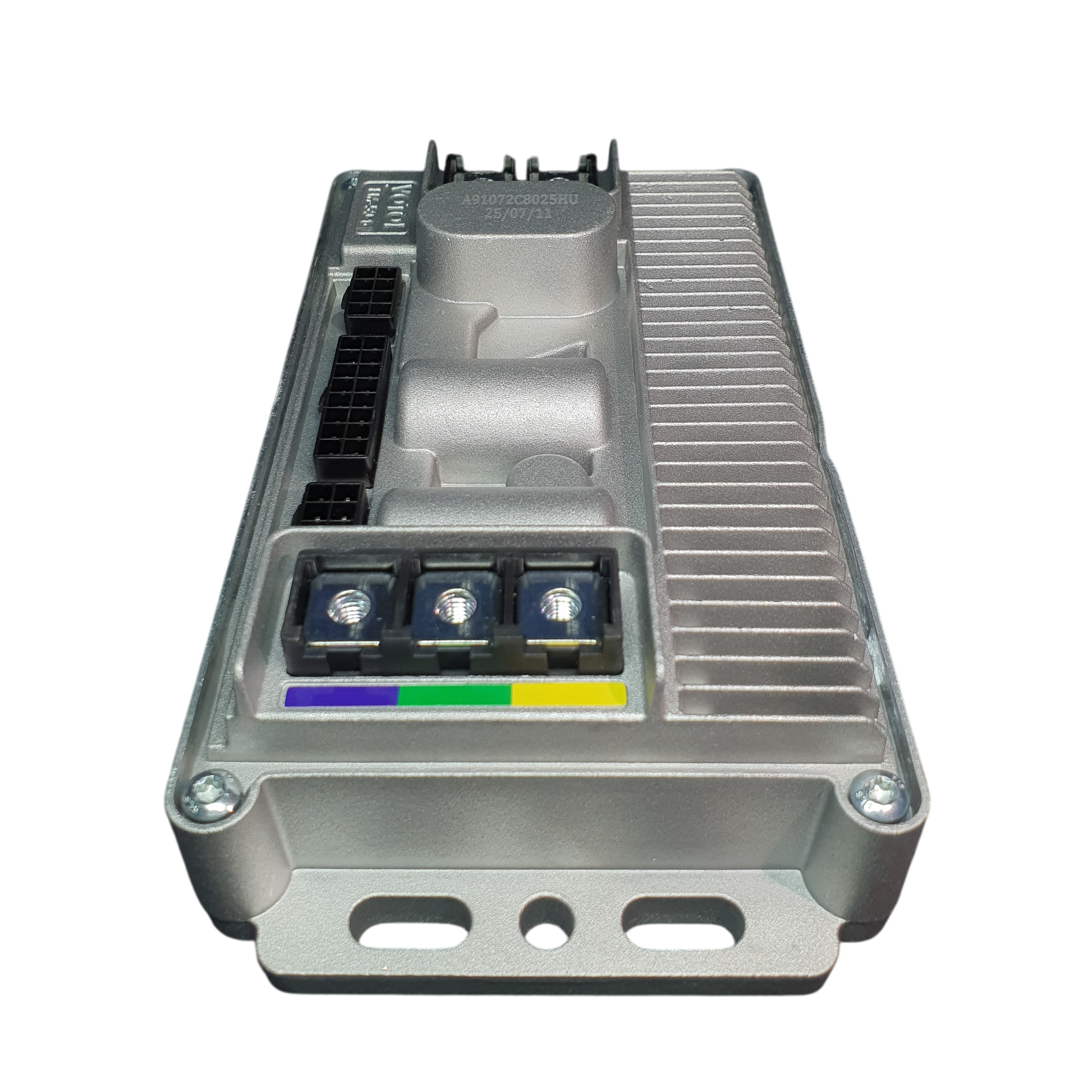

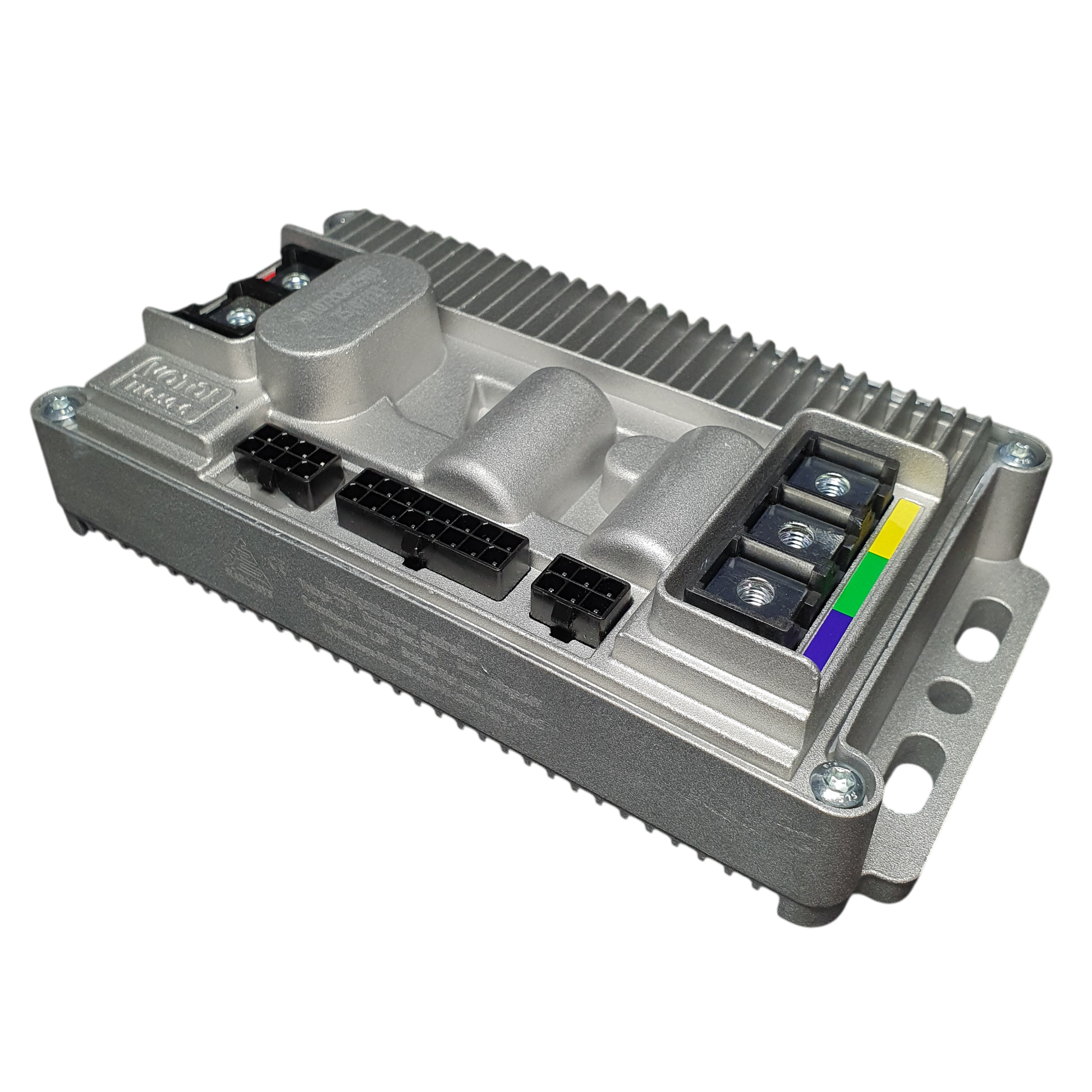

VOTOL EM50-6P Controller with USB + Heatsink, 50A Battery, 170A Phase
Controller Specifications:
Sine wave controller, programmable, with regen functionality.
Rated Voltage: 48V-72V
Maximum Input Voltage: 88.0V
DC Current Limit: 50A
Max. Phase Current: 170A
Thermal Sensor Range: PTC, NTC230K, KTY84-130, KTY83-122, NTC10K, NTC100K and CACU(Temperature Simulation for motors without a sensor)

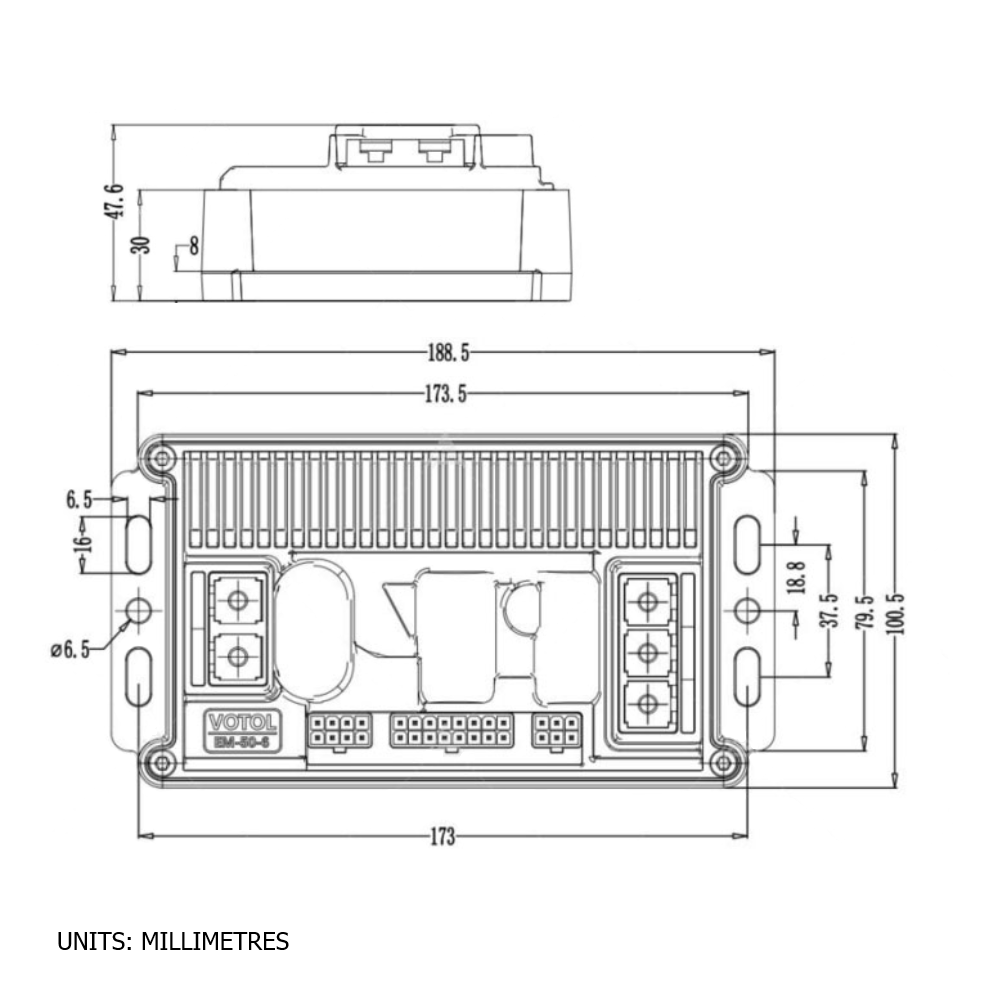

Controller size: 189mm x 101mm x 48mm
Net weight: 1.38kg
IP67 Water Resistant
Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three-speed function, Hall speedometer, Reverse, Cruise
Solid aluminium heat sink
Regenerative Breaking
Package Includes:
1x VOTOL EM-100 GTS Controller

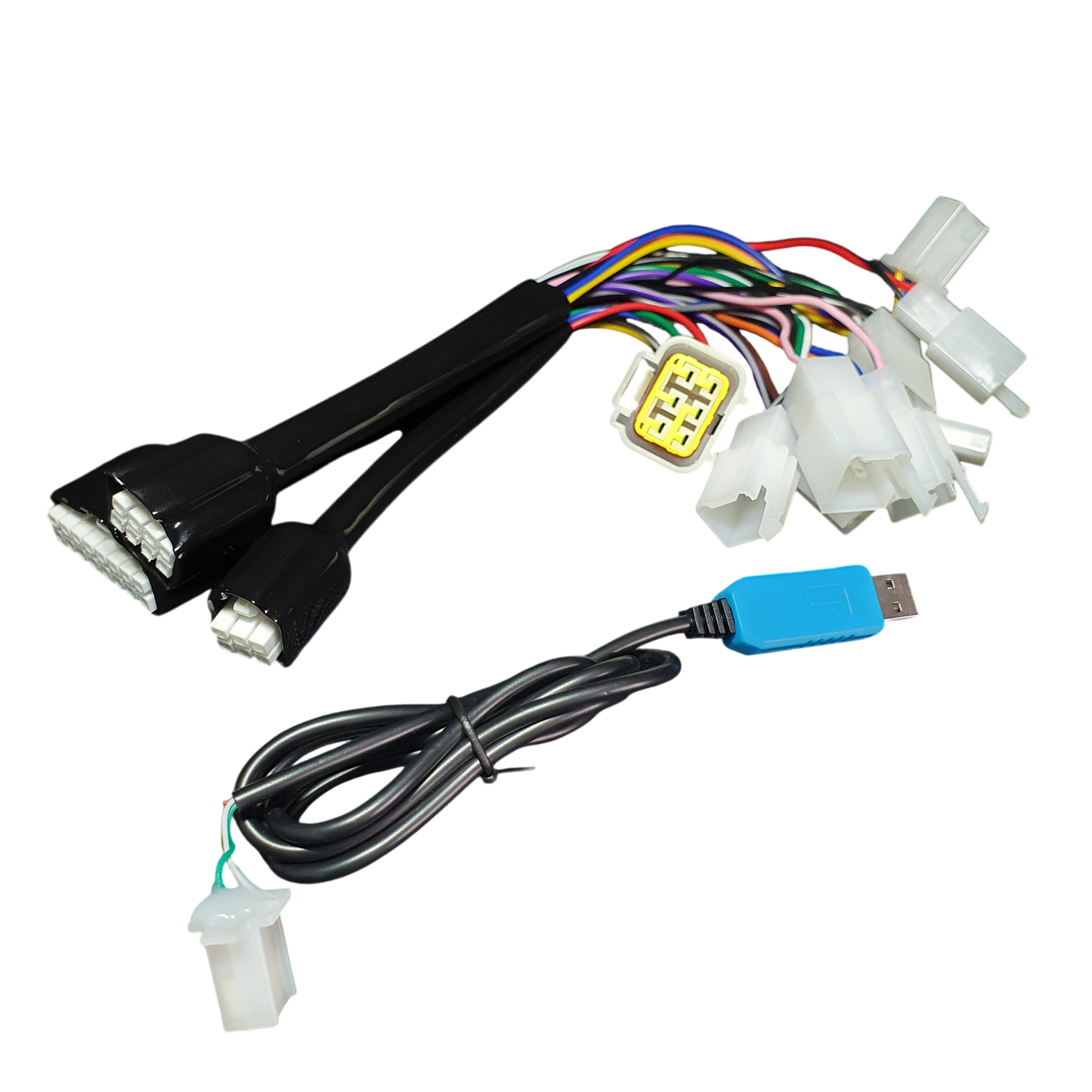

1x USB Programming Cable
1x Complete Wiring loom
5x Terminal Screws
