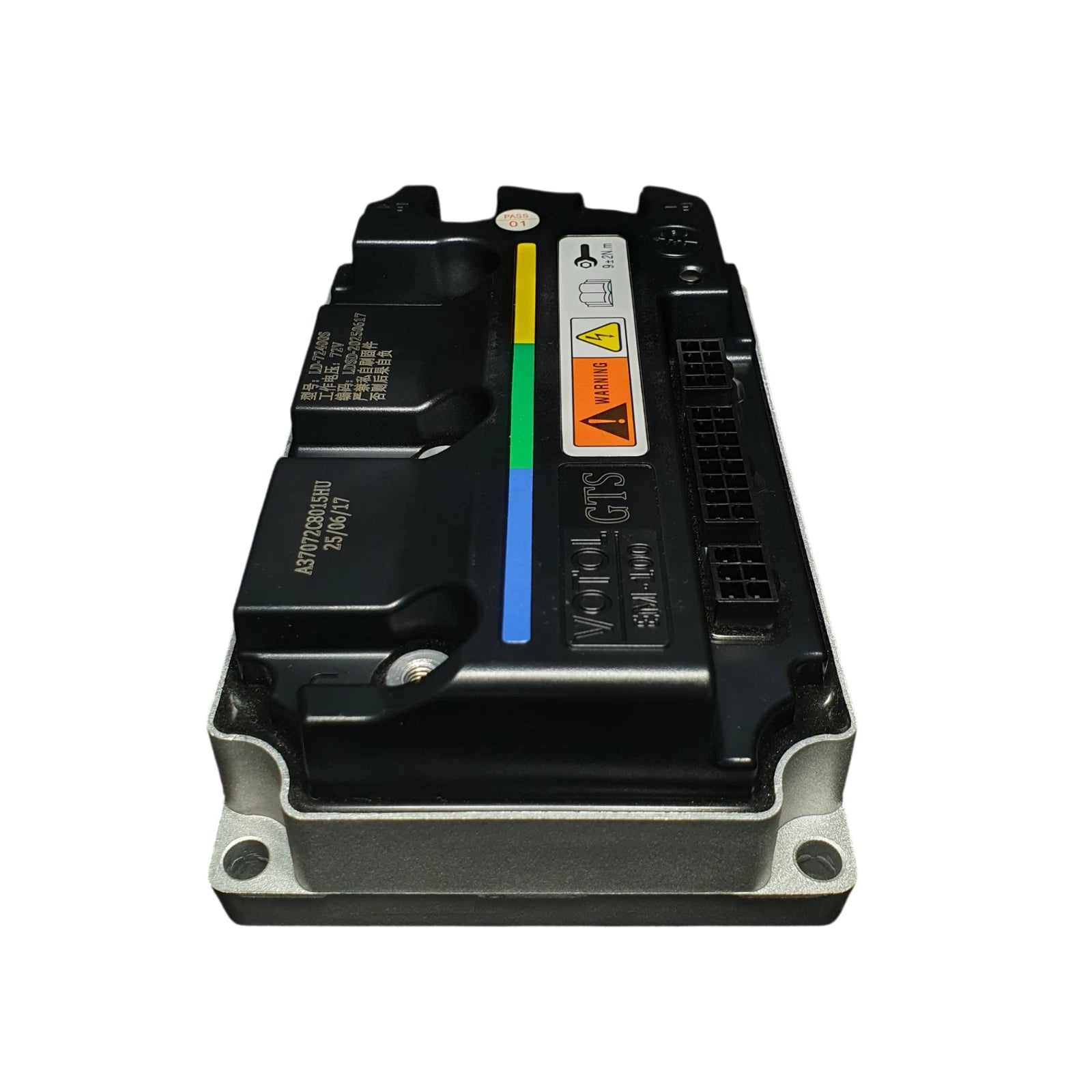

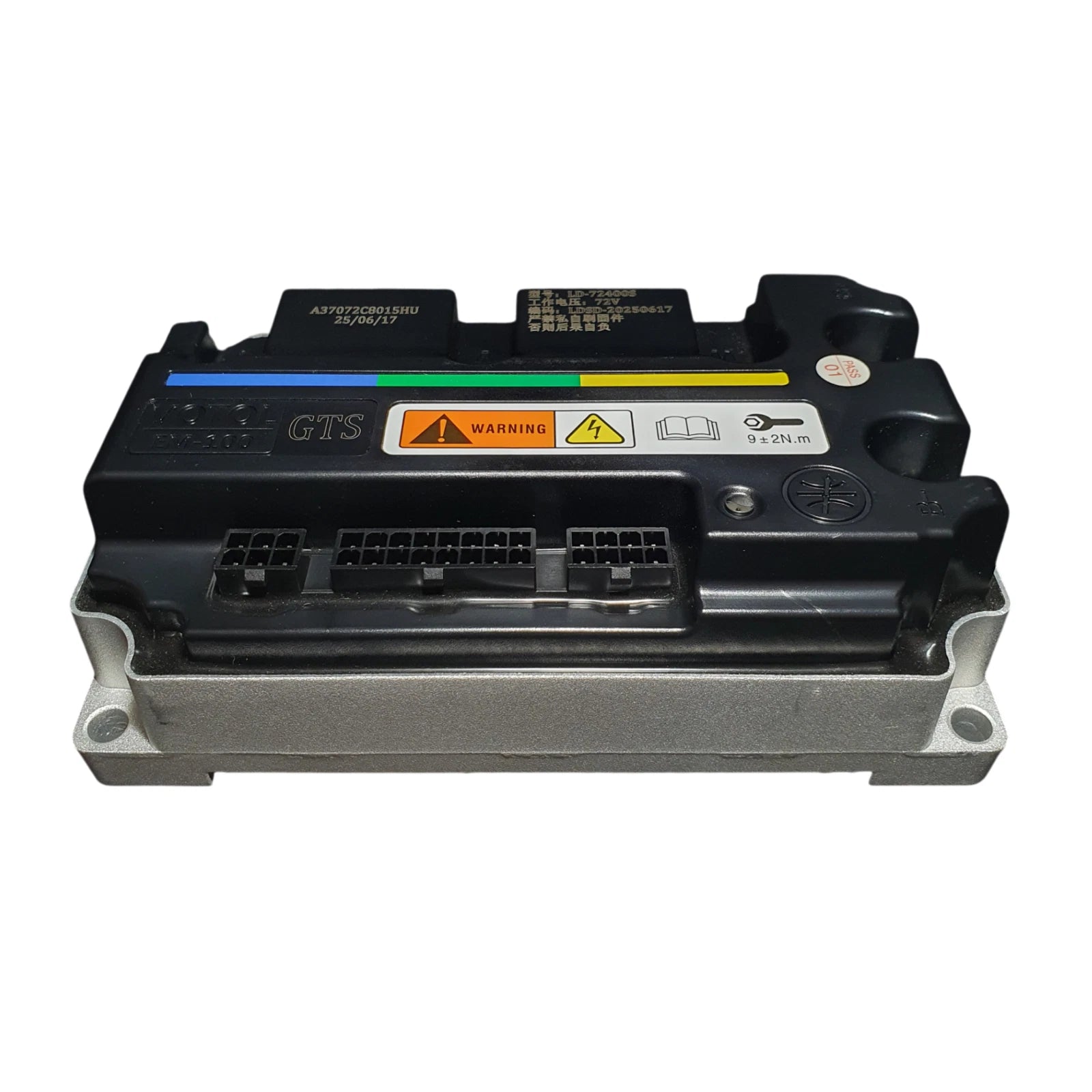

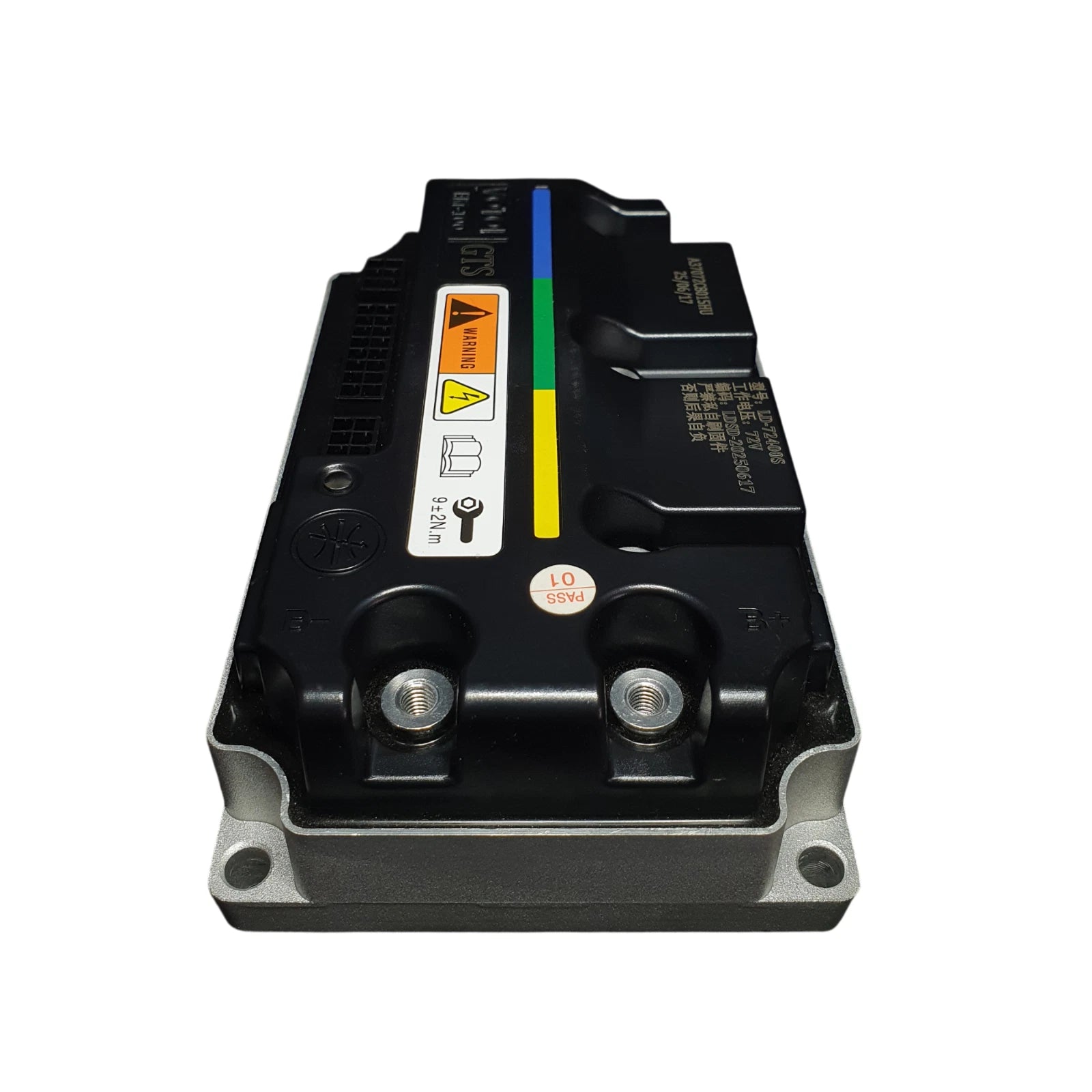

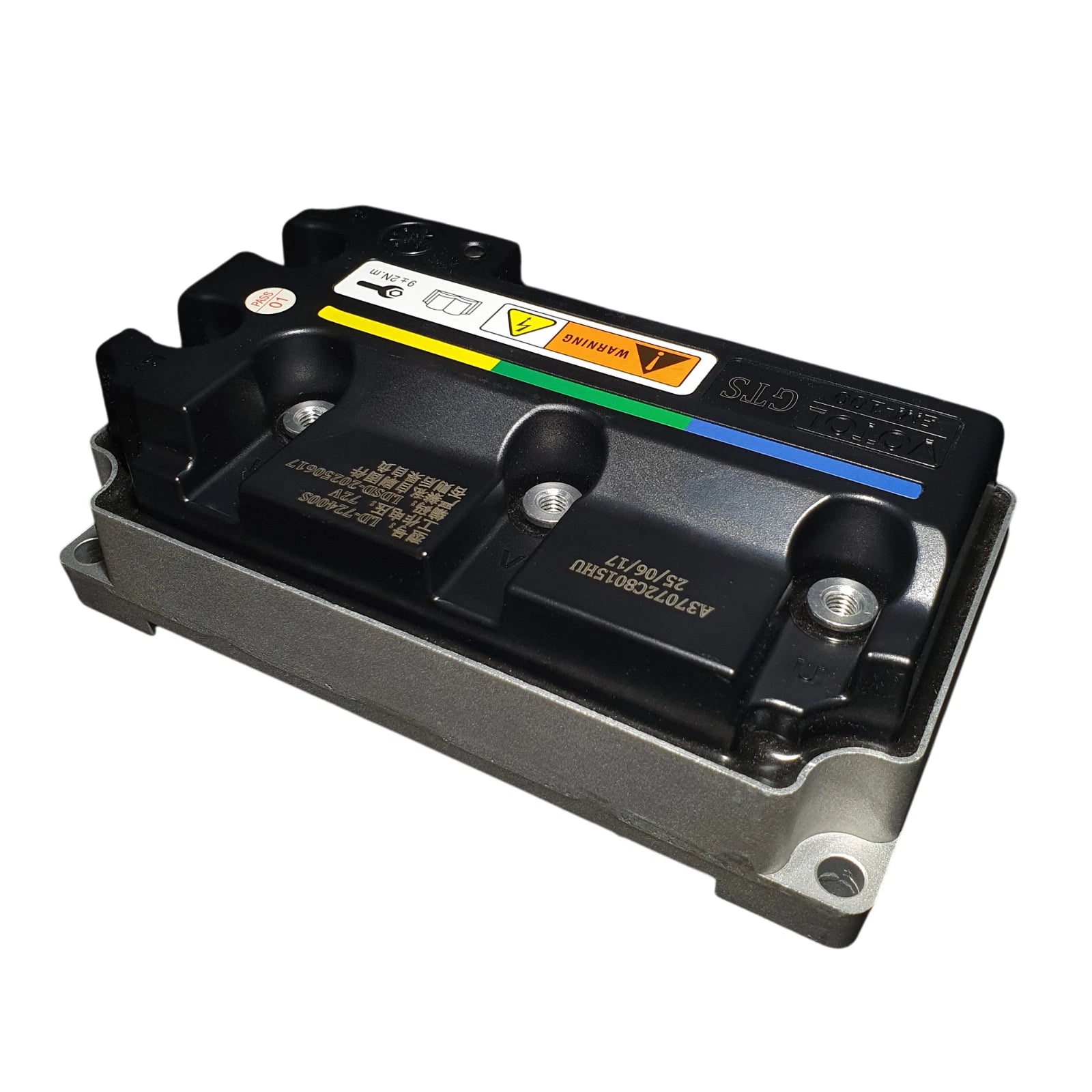

VOTOL EM100-GTS Controller with USB + Heatsink, 200A Battery, 400A Phase

48-72V VOTOL EM100-GTS Controller with USB + Heatsink, 200A Battery, 400A Phase

Controller Specifications:

• Sine wave controller, programmable, with regen functionality.
• Rated Voltage: 48V-72V
• Maximum Input Voltage: 88.0V
• DC Current Limit: 200A
• Max. Phase Current: 400A
• Thermal Sensor Range: PTC, NTC230K, KTY84-130, KTY83-122, NTC10K, NTC100K and CACU(Temperature Simulation for motors without a sensor)
• Controller size: 174mm x 104mm x 56mm
• Net weight: 1.1kg
• IP67 Water Resistant
• Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three-speed function, Hall speedometer, Reverse, Cruise
• Solid aluminium heat sink
• Regenerative Breaking

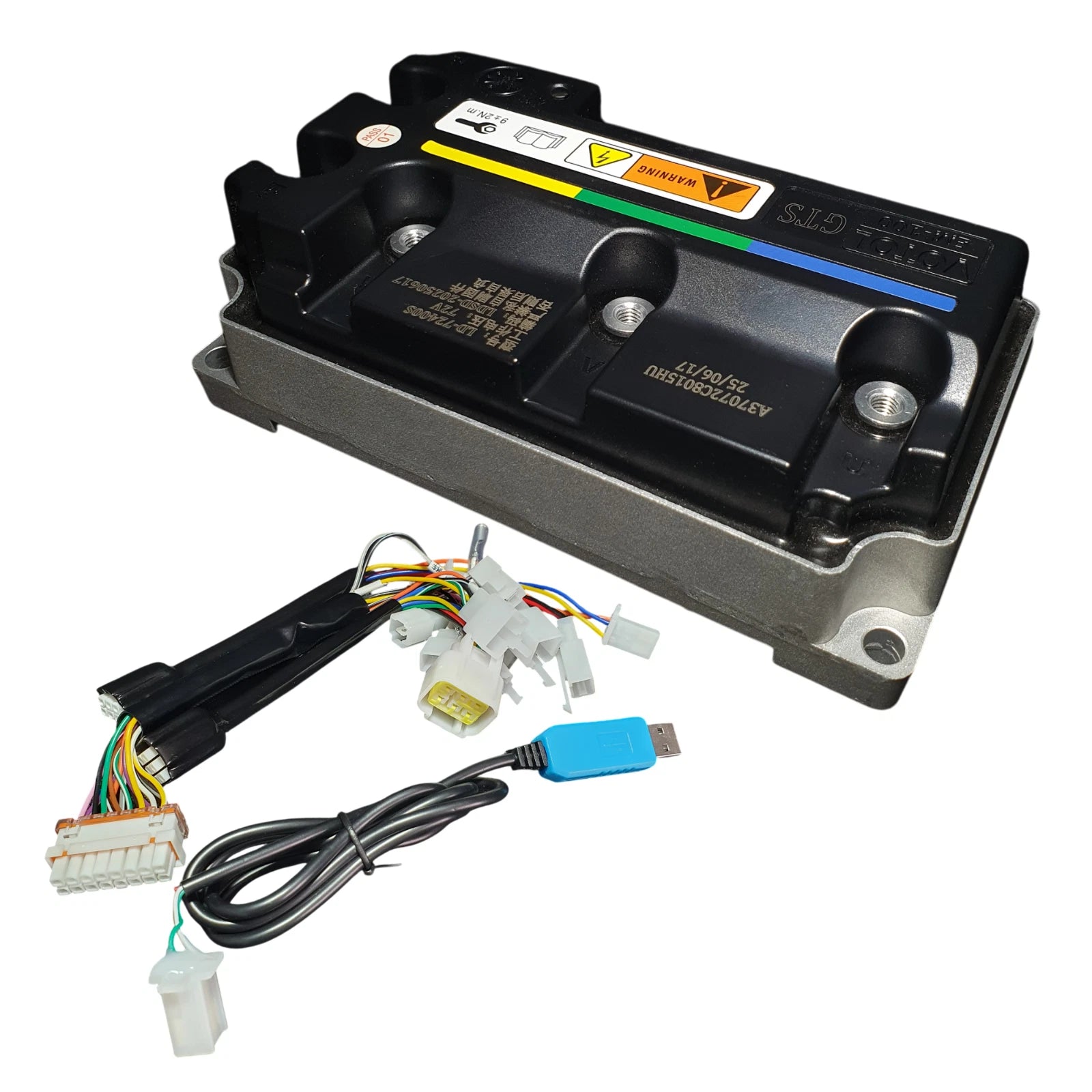

Package Includes:

1x VOTOL EM100-GTS Controller

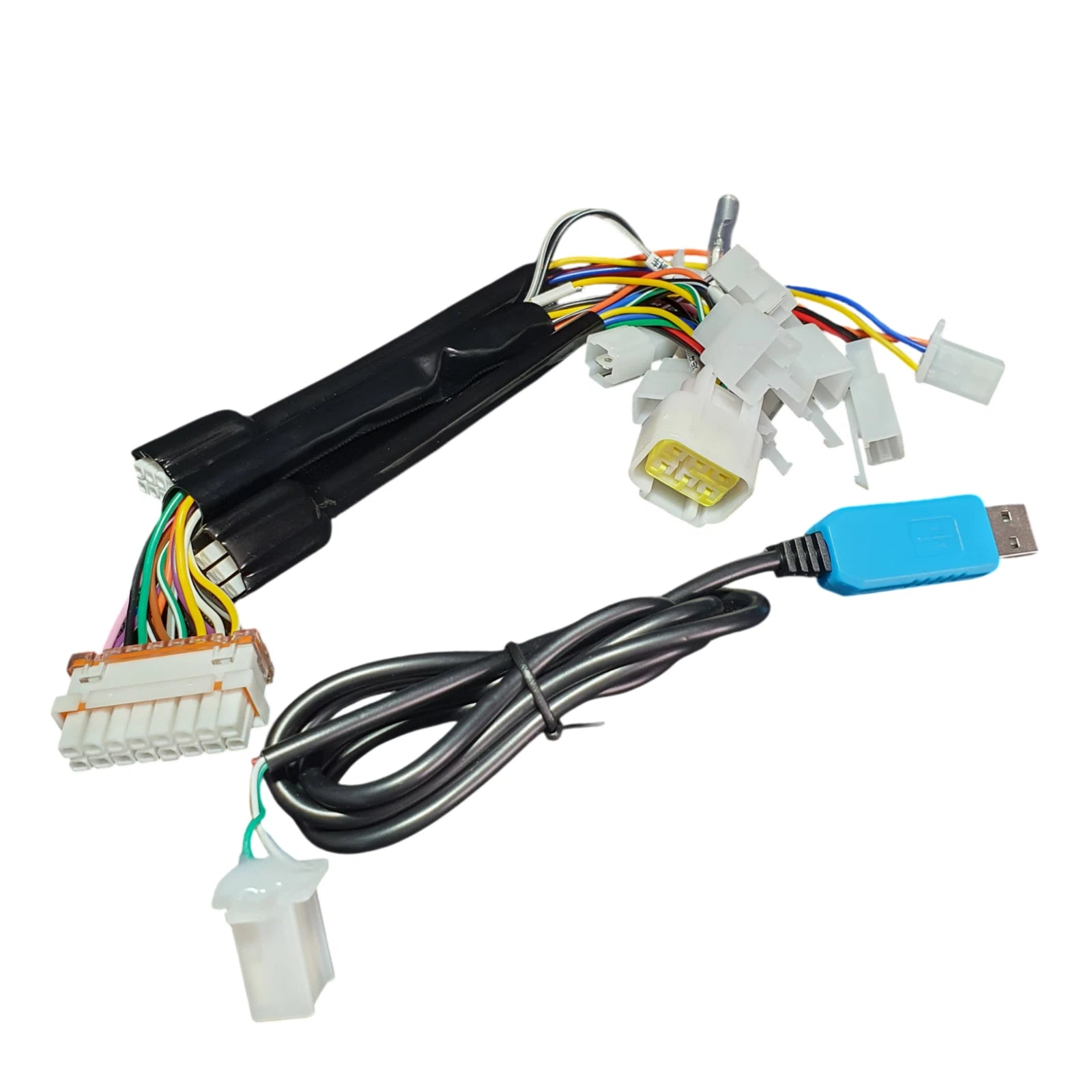

1x USB Programming Cable

1x Complete Wiring loom

5x Terminal Screws
