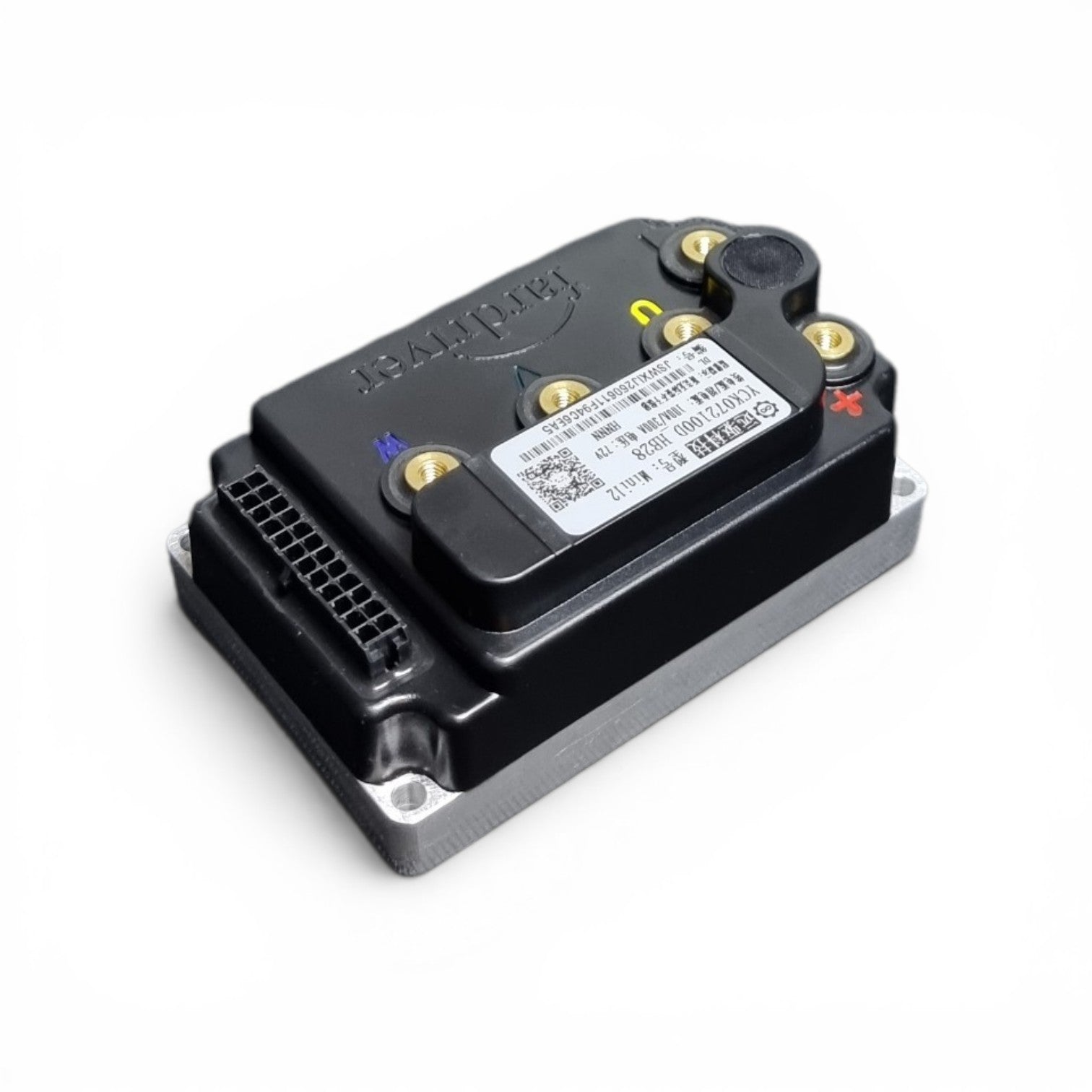

FarDriver ND72300 Mini Controller with Bluetooth, 100A Battery, 300A Phase

48-72V FarDriver ND72300 Mini Controller with Bluetooth + Heatsink, 100A Battery, 300 Phase Amps

Controller Specifications:

• Sine wave controller, programmable, with regen functionality.
• Compact mini design for small installation spaces.
• Rated Voltage: 48V-72V
• Maximum Input Voltage: 88.0V
• DC Current Limit: 100A
• Max. Phase Current: 300A
• Protect Phase Current: 300A
• Programming: Mobile App & PC
• Thermal Sensor Range: PTC, NTC230K, KTY84-130, KTY83-122, NTC10K, NTC100K and CACU(Temperature Simulation for motors without a sensor)

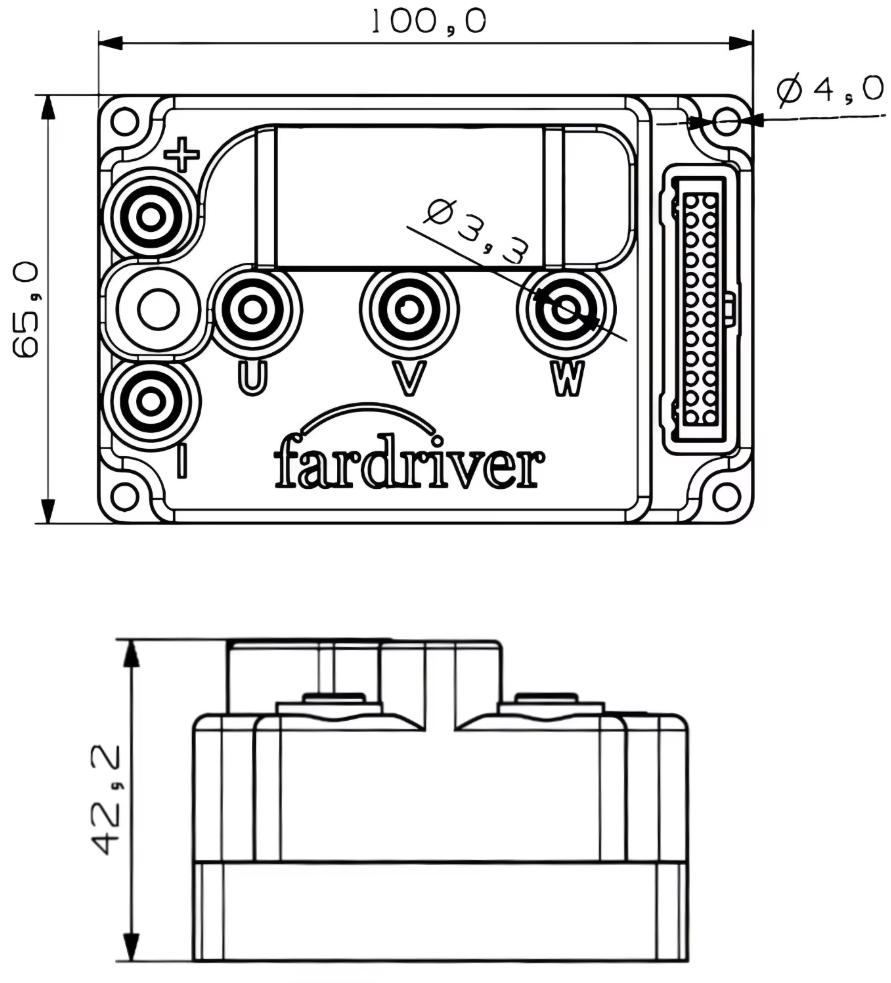

• Controller size: 100mm x 65mm x 42.2mm
• Mounting Hole: Ø4.0mm
• Net Weight: 0.65kg
• IP67 Water Resistant
• Default function: Hall, Throttle, Electric Lock, High Brake Level, Bluetooth debugging port, High and Low Speed Signal Lines, Reverse Gear, Cruise Control
• Solid aluminium heat sink
• Regenerative Breaking

Package Includes:

1x ND72300 Mini Controller

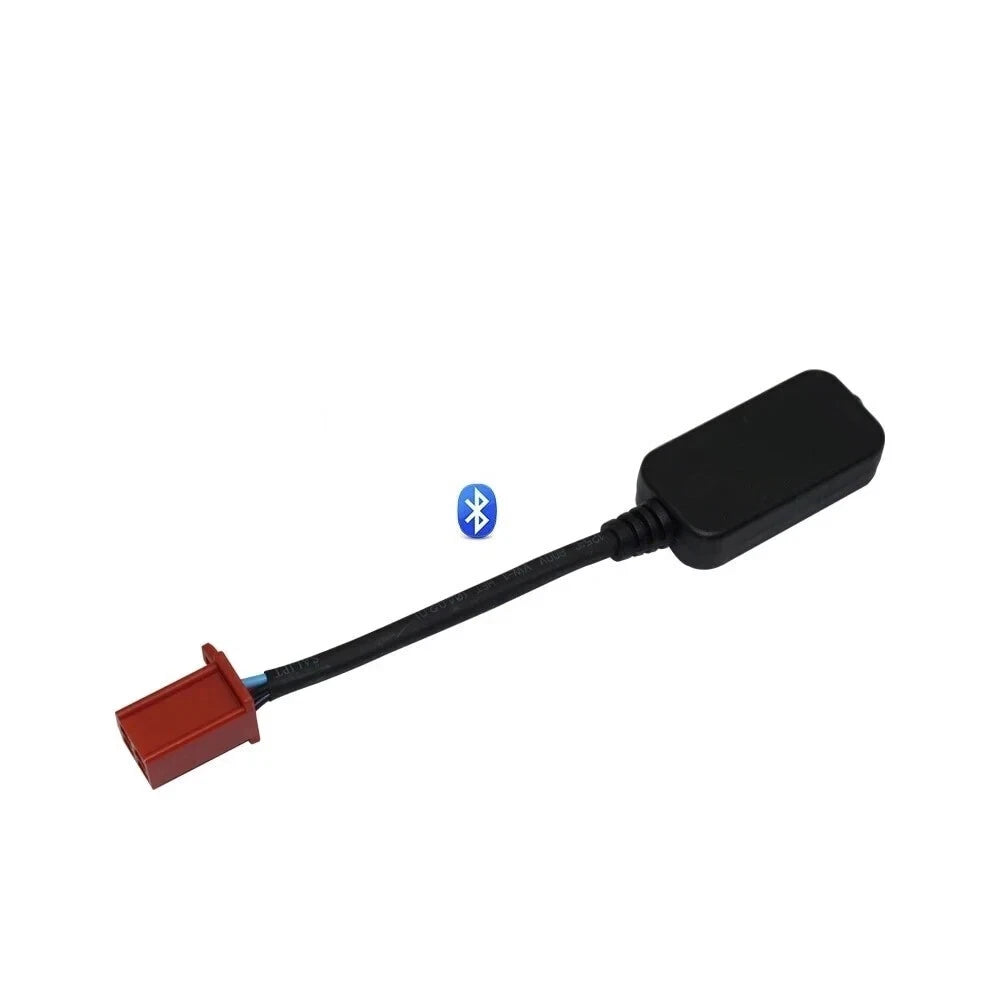

1x USB Bluetooth Adapter

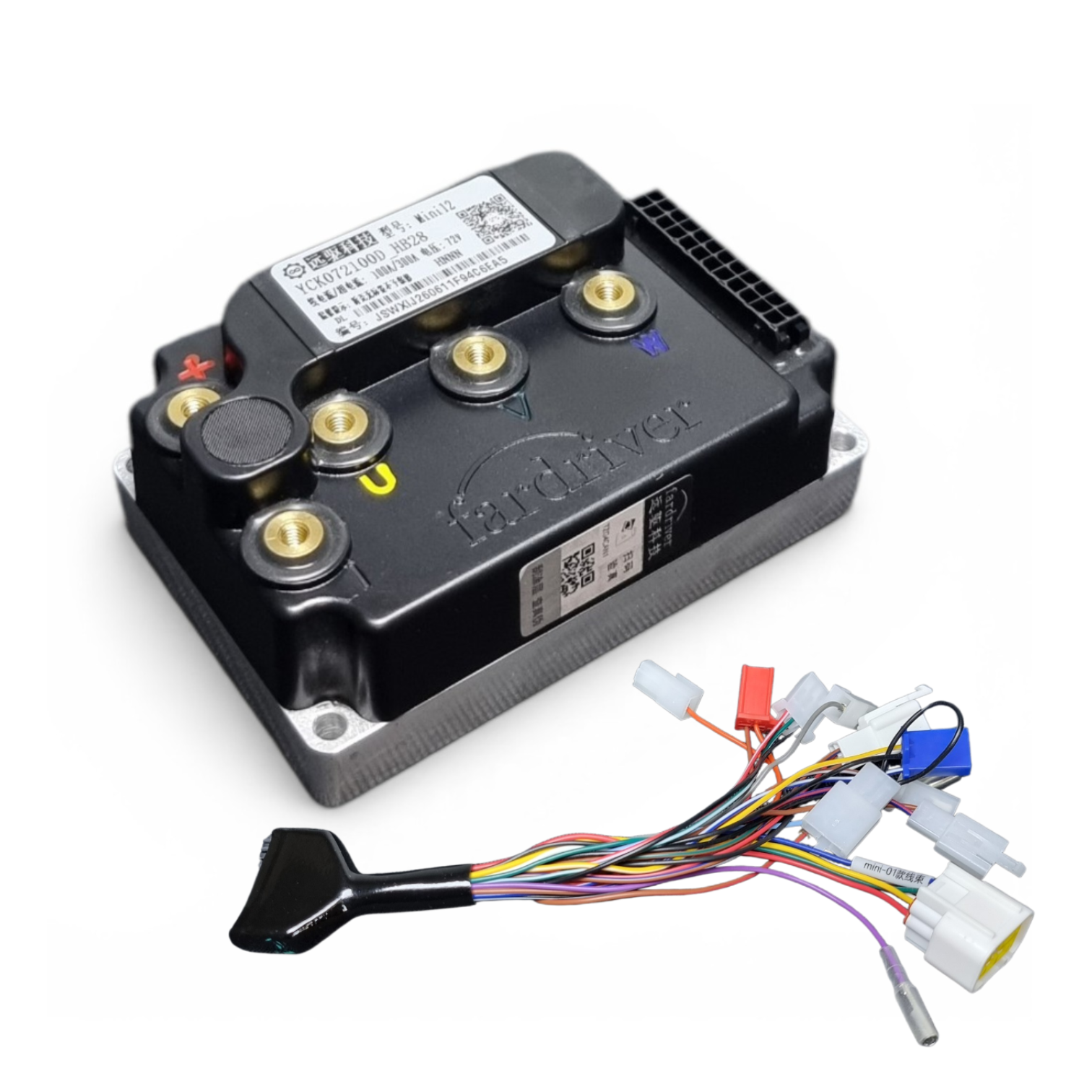

1x Complete Wiring loom

5x Terminal Screws
